GUANGDUAN 1250-ton Multi-station Press Production Line

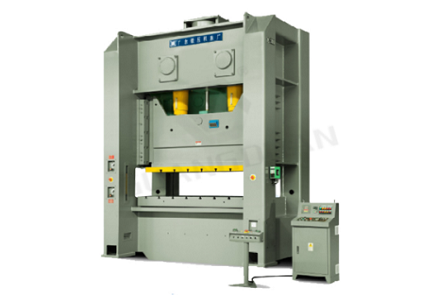

GUANGDUAN 1250-ton Multi-station Press

Guangduan Company has successfully delivered a 1250-ton multi-station press production line to the automobile industry. The line consists of a double-point 1250-ton multi-station press, an uncoiling and straightening feeding system, a three-axis robot conveying system and a belt discharging system. The double-point 1250-ton multi-station press is designed with a bolster size of 5m * 1.9m, a slide stroke of 700 mm, and a maximum die height of 1.4 meters.

We have an industrial hydraulic press machine that consists of a servo feeder, an unstacking mechanism, a micro-feeder and a conveyor belt. Our automation system is able to do five different kinds of production processes such as stacking, plus hydraulic shearing, three-dimensional conveying and progressive die. There is a Chief Manufacturing Office computer control system to monitor the machine’s status and production data in real time to realize intelligent production management and control.

The industrial hydraulic press machine consists of a set of three-in-one servo feeder, a set of double-station sheet material unstacking mechanism, a set of three-dimensional conveying manipulator, a set of tail material micro-feeder and a set of product conveyor belt. The automation system can achieve five different production processes such as unstacking, servo feeding of steel or aluminum sheets plus hydraulic shearing, three-axis transmission and progressive die etc. There is a CMS production management control system to monitor the machine’s running status, parameters, production data and so on in real time to realize intelligent production management and control.

The machine adopts international advanced PLC control system with high accuracy positioning system which ensures the accuracy of each stage processing; it has functions like automatic feeding, automatic cutting and automatic stacking for saving labor cost; the function for adjusting cutting depth during hydraulic cutting makes sure that the cutting edge is always in the same level with thickness tolerance less than 0.2mm; it has features like high efficiency and low energy consumption etc.

Thanks for watching.  More details you can Contact us as soon as possbile !
