Precision Hydraulic Forging for Gears and Shafts (Automotive Parts): GUANGDUAN Y28 Series in Action

The pedal upstarts can be found in the driveline and transmission of the vehicle. Therefore, when the vehicle receives a command to transfer electrical power from the vehicle to the wheels, the pedal upstarts absorb the twisting and continuous forces and impacts when driving through the city. They experience high cycle fatigue. Because of the impacts they undergo and their critical dimensions, a Hydraulic Forging Press is required for Automotive Parts.

GUANGDUAN‘s Y28 Series Four-Column Double Action Hydraulic Press is among the best presses for this purpose. Where it comes to the manufacturing of high-integrity parts, especially gears and axle shafts, it has the absolute best rigidity, precision, and flexibility.

Why Hydraulic Forging for Gears and Shafts?

Fast and efficient is how mechanical presses should work, but they can’t provide full-stroke force and precise dwell control. Hydraulic forging provides unique advantages for cylindrical and complex-shaped drivetrain components:

•Full tonnage throughout the stroke – preferable for thorough metal flow while forming teeth on gears.

•Adjustable pressing speed – prevents cracking during shaft upsetting.

•Dwell (holding) capability – allows metal to fill complex die cavities completely.

•Overload protection – avoids catastrophic die or press damage.

For critical parts like transmission gears, differential pinions, and propeller shafts, a Hydraulic Forging Press For Automotive Parts guarantees superior grain flow and minimal internal voids compared to casting or machining from bar stock.

The Science of Forging Gears and Shafts

Precision hydraulic forging of a gear or shaft is not simply “squeezing” hot metal. It is a controlled deformation process:

•Billet heating – the raw steel or aluminum is heated to a uniform forging temperature (typically 1100–1250°C for steel).

•Pre-forming – the billet is upset to increase diameter for gear blanks.

•Final forming in a closed die – the hydraulic press forces metal into every tooth profile and shoulder.

•Piercing (for hollow shafts) – a separate punch forms the inner bore.

The key challenge? Maintaining concentricity between the gear’s pitch circle and its bearing journals. Any misalignment leads to noise, vibration, and early failure. This is where a Four-Column Double Action Hydraulic Press like GUANGDUAN’s Y28 Series excels.

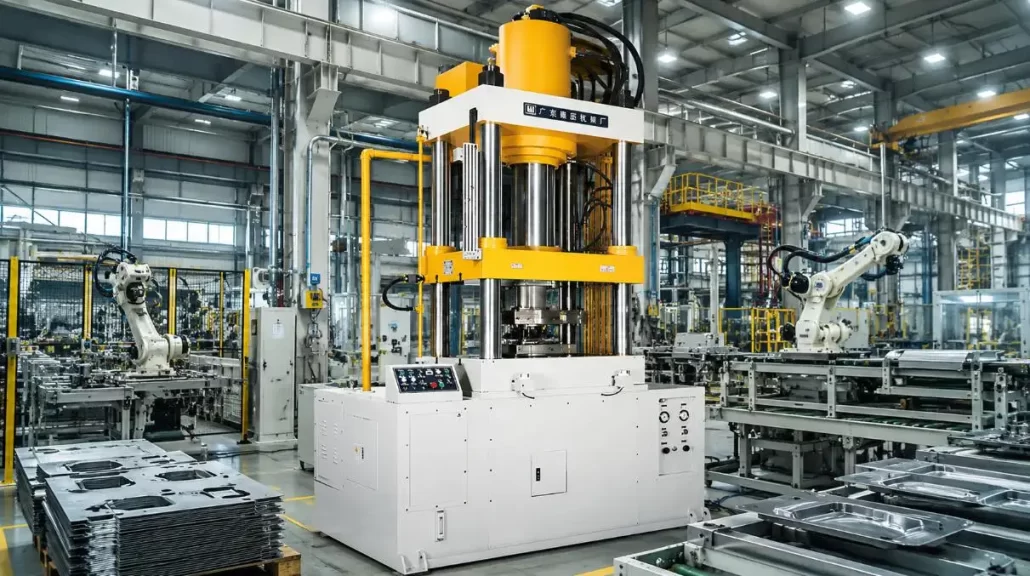

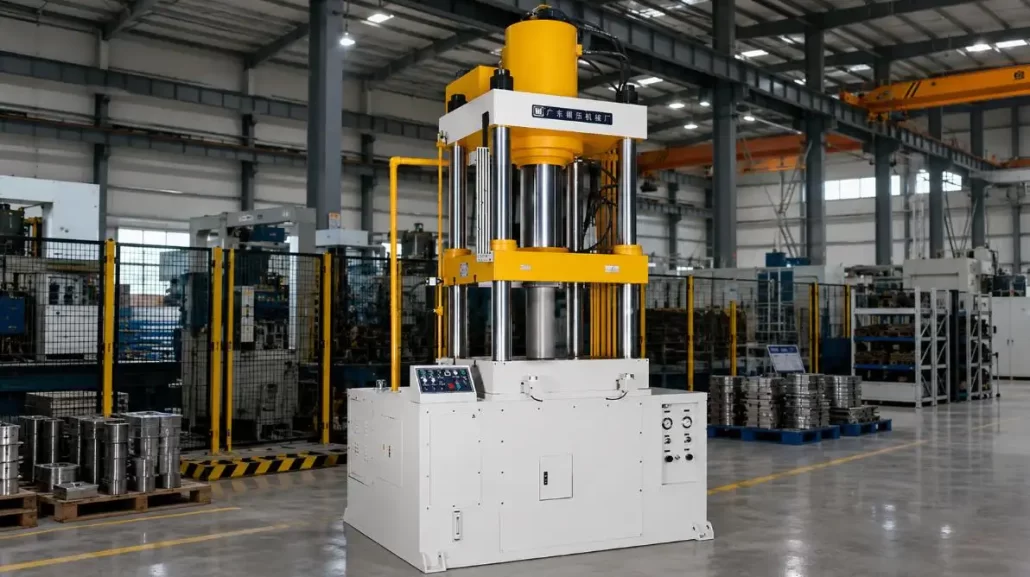

GUANGDUAN Y28 Series: Designed for Precision Automotive Forging

The Y28 Series Four-Column Double Action Hydraulic Press is widely recognized for thin-plate deep drawing, but its structural DNA makes it equally powerful for precision forging of gears, shafts, and other cylindrical automotive parts. Let’s examine why.

1. Four-Column Three-Beam Structure: Ultimate Rigidity

“Four column three beam structure and cylinder and cylinder rods are chrome plated after thermal refining and polishing. High rigidity, good guidance performance and fast idle running.”

Gear forging demands extreme die alignment. Any side deflection during pressing will produce asymmetrical teeth or bent shafts. The Y28’s four heavy columns and three beams (top, moving, bottom) provide high rigidity that prevents angular deflection. Chrome-plated, thermally refined cylinder rods also ensure low friction and long seal life – critical for high-volume automotive production lines.

2. Double Action: Two Movements in One Cycle

Double action means two independently controlled rams:

•Outer slide – can act as a blank holder (for deep drawing) or, in forging, as a pre-form punch.

•Inner slide – delivers the main forging force.

For shaft-like components, this double action allows two-step forging in a single press stroke: first rough shaping, then final calibration. This reduces handling, improves concentricity, and increases output – a major advantage when using a Hydraulic Forging Press For Automotive Parts in a just-in-time manufacturing cell.

3. Globally Sourced Hydraulic Components for Reliability

“Main hydraulic components and seals are worldwide famous, all with superior performance and reliable quality.”

Automotive forging runs 24/7. Downtime for seal or pump replacement kills profit margins. GUANGDUAN equips the Y28 Series with premium international hydraulic parts, ensuring that the press maintains consistent forging force cycle after cycle – even when producing thousands of gear blanks per shift.

4. Fixed Position or Fixed Pressure Modes

“Fixed position or fixed pressure mode is selectable for working processing, withholding pressure, and delay.”

This is a game-changer for gear and shaft precision:

•Fixed position mode – the ram stops at a precise depth, ideal for calibrating gear thickness or shaft shoulder location.

•Fixed pressure mode – the ram applies a set tonnage regardless of material variations, perfect for cold sizing of splines or bearing diameters.

The ability to add withholding pressure (dwell) allows the forged part to “creep” into fine details – for example, filling the root radius of a helical gear tooth – without cracking.

5. Adjustable Working Pressure and Stroke

“Working pressure and stroke can be adjusted for different processing requirements.”

Different automotive parts need different forging energies:

•A small synchronizer gear (200 mm diameter) → low tonnage, short stroke.

•A heavy truck transmission shaft (800 mm length) → high tonnage, long stroke.

The Y28 Series lets operators dial in the exact pressure and stroke length. No wasted energy, no over-forging. This flexibility makes it an ideal Hydraulic Forging Press For Automotive Parts for job shops and high-mix OEM lines.

6. Safety & Control: Two-Hand Synchronization with Repeat Prevention

“Centralization buttons, Adjustment/Single cycle operation type selectable, with two-hand synchronization and two-hand repeat prevention safely function.”

Forging is dangerous work. The Y28’s two-hand control system ensures the operator’s hands are clear before the ram moves. The repeat prevention logic avoids accidental double cycling – a vital feature when loading hot billets (800–1200°C) into the die.

How These Features Benefit Gear & Shaft Forging – Bullet Point Summary

Feature of Y28 Series	Direct Benefit for Gears / Shafts
High rigidity, four-column design	Perfect concentricity of gear teeth to bore
Double action	Pre-form + final forge in one press
Fixed position / pressure mode	Tight thickness tolerance (±0.1 mm) on gear blanks
Adjustable pressure & stroke	Same press for pinions, axles, and CV joint components
Worldwide hydraulic components	Minimal downtime in high-volume auto plants
Two-hand & anti-repeat safety	Safe operation with hot, heavy billets

Real-World Automotive Applications

Using a Hydraulic Forging Press For Automotive Parts like the GUANGDUAN Y28 Series, manufacturers routinely produce:

•Transmission input shafts – with integral gear teeth forged, not cut (saving 30% material).

•Differential side gears – net-shape forged, requiring only finish grinding.

•Axle shafts – upset forged to form larger flanges without fibers being cut.

•Electric vehicle (EV) reduction gear shafts – in aluminum alloy, using slow hydraulic speed to avoid flow lines breaking.

In each case, the press’s adjustable withholding pressure eliminates internal shrinkage cavities – a common defect in cast parts.

Conclusion: GUANGDUAN – A Trusted Partner for Automotive Forging

When choosing a Hydraulic Forging Press For Automotive Parts, you need more than a tonnage rating. You need precise control, structural rigidity, and safety. The GUANGDUAN Y28 Series Four-Column Double Action Hydraulic Press delivers all this – from its chrome-plated rods and four-column stability to its dual pressure/position control modes. Whether you are forging heavy truck axle shafts or precision EV gear blanks, the Y28 Series provides the repeatability and flexibility required for modern automotive production.

Invest in GUANGDUAN, and you invest in reliable, high-quality forged gears and shafts – the silent backbone of every vehicle on the road.

FAQ

Q1: What is the tonnage range of the Y28 Series for making forged gears and shafts?

A: The Y28 Series can be configured from 100 to over 5,000 tons for small synchronizer gears to large truck axle shafts.

Q2: What types of materials can the Y28 Series forge besides steel?

A: Yes, the Y28 Series can be used to forge parts for lightweight e-vehicle drivetrains made from aluminum, brass as well as many high-strength alloys.

Q3: How does double action improve forging shafts?

A: With the outer slide shaping the outer perimeter of the billet, and the inner slide shaping and finishing the inner cavity of the billet, both cycle time and concentricity of the finished product improves.

Q4: Beyond hot forging does the press allow for cold forging?

A: Certainly, the press can achieve hot forging by changing the position of the slides, and cold forging by keeping the slides in a fixed position as well.

Q5: What maintenance does the Y28 Series require?A: Very little. The chrome-plated, thermally refined cylinders and world-class hydraulic seals ensure long intervals between service checks.
