Automotive Metal Forming Machine Solutions for Modern Car Plants

Across the global automotive supply chain, stamping lines are expected to deliver more parts, tighter tolerances, and fewer unplanned stoppages. Body panels, chassis members and safety-critical brackets all rely on stable, repeatable forming. In this context, an Automotive Metal Forming Machine is no longer viewed as a simple source of tonnage. It becomes a production platform that shapes quality, cost structure and risk throughout the life of a vehicle program.

GUANGDUAN develops its presses with this wider role in mind. Instead of chasing only nameplate capacity, the design focus is on rigidity, precision, automation readiness and long-term reliability under demanding automotive duty cycles.

What Is an Automotive Metal Forming Machine?

In most automotive plants, an Automotive Metal Forming Machine is a high-rigidity mechanical press used to stamp sheet metal. A motor drives a crank mechanism that transforms rotary motion into a controlled linear stroke, forming flat blanks into panels and structural components.

Typical applications include:

•Outer body panels and closures

•Inner reinforcements and mounting brackets

•Crossmembers, subframes and other structural parts

To perform consistently in automotive environments, the machine must deliver:

•High stroke rates for mass production

•Accurate bottom dead center (BDC) positioning

•Strong resistance to unbalanced and eccentric loads

•Clean integration with progressive, transfer and multi-station automation

Any weakness in these areas quickly shows up as dimensional drift, tool damage, rising scrap and unexpected downtime—problems that today’s OEMs and Tier suppliers cannot afford.

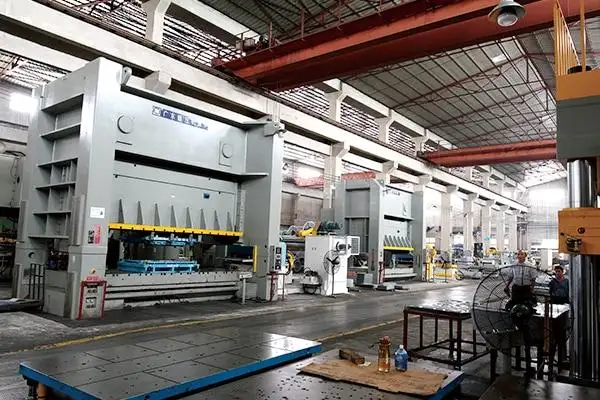

GD2 Series: Straight Side Double Point Multi-Station Press

Within GUANGDUAN’s product range, the Straight Side Double Point Multi-Station Press GD2 Series is engineered specifically as an Automotive Metal Forming Machine for high-volume stamping lines. The straight side frame, double point drive and multi-station capability make it naturally suited to progressive and transfer dies commonly used in automotive body and chassis production.

The series covers medium and large presses, including models above 600 tons, with each configuration designed to maintain accuracy, uptime and part quality under continuous, multi-shift operation.

Structural Rigidity Tailored for Demanding Stamping Jobs
Welded Steel Plate Body and Slide

The press frame and slide are made from welded, quality steel plate. The weld design and stress-relief treatment are engineered to achieve high structural rigidity with controlled vibration response. As a result, customers see:

•More predictable forming curves under varying loads

•Tighter part-to-part dimensional control

•Less chance of permanent frame deflection during prolonged heavy-duty operation

Split Frame with Preloaded Tie Rods

For GD2 presses above 600 tons, a split frame combined with preloaded pull (tie) rods is used to maintain frame integrity and alignment under extreme forming forces. This concept offers two important advantages:

•Easier transport and installation of large-capacity presses

•Improved stiffness and long-term precision, as the pre-tightened frame stays in a compressed state even under severe automotive loading conditions

•This structural strategy helps keep die alignment and part quality under control over many years of production.

Advanced Drive System for Stable, High-Speed Operation
Two-Level Gear Transmission

A two-level gear transmission is used to reach the slide speeds required for high-volume automotive work. Power travels smoothly from the main motor through the gear train to the crankshaft, supporting continuous operation in transfer lines and progressive stamping cells where every second counts.

The 100-ton stamping press marks a significant advancement in manufacturing. Designed to handle heavy materials with exceptional precision, it will transform the production process. By boosting both speed and quality, the press enables the creation of more complex parts with greater efficiency. As demand for precision manufacturing rises, this new addition helps companies stay competitive on a global scale. It not only increases production capacity but also reduces costs, unlocking new opportunities across various industries. Let's dive in! The Power Behind the Press: What Makes It Special Explanation of the 100-Ton Capacity and Its Technical Advantages The 100-ton stamping press GD2 is a powerful machine. It can handle heavy materials with ease. The press has a capacity of 100 tons, which makes it ideal for large, complex parts. The main structure of the press is made from high-quality steel plates. These parts are welded together, giving the machine great rigidity. This rigid structure allows the press to perform well under heavy loads. It can produce parts consistently and accurately. The press is built to last and can handle tough tasks with no issues. How the Press Enhances Accuracy and Efficiency in Production This press improves both accuracy and efficiency. It uses a two-level gear transmission system. This helps the press operate smoothly and quickly. The slide's operating strokes are high, which increases production speed. The press has an enlarged interval between the crank and the connecting rod. This feature makes the machine more resistant to unbalanced loads. It also helps the press maintain precision over time. As a result, the press produces high-quality parts quickly and efficiently. Benefits to Local and Global Industries Impact on Industries Like Automotive, Aerospace, and Electronics The GD2 stamping press benefits many industries. It plays a big role in the automotive industry. Car manufacturers need precise parts for engines and body structures. The press helps meet these needs. The aerospace industry also relies on this machine. It makes parts for aircraft that require high accuracy and strength. Electronics companies use the press to make small, detailed components for devices like smartphones and computers. The press meets the needs of these industries by producing high-quality parts quickly and at scale. How the Press Meets Increasing Demand for High-Precision Components As industries grow, the demand for high-precision parts increases. The 100-ton press helps meet this demand. It can produce small, complex parts with great accuracy. This is important in fields like aerospace, automotive, and electronics, where precision is key. The press makes it possible to meet rising production demands while keeping quality high. It ensures that manufacturers can deliver parts that meet strict standards. This capability will be even more important as technology continues to advance. Guangduan's Cutting-Edge Technology: Features of the New Press Advanced Technology Integrated into the Press The new press uses advanced technology. The slide has an eight-surface long-guide system. This helps reduce side force and improves precision. The press can also be fitted with a multi-section air cushion. This cushion is used for multi-station stamping. It also has an upper knockout cylinder for the slide block. These features make the press suitable for metal sheet stamping. The press is ideal for automation industries, such as progressive die and multi-station stamping. The press supports both two-dimensional and three-dimensional servo production line installation. These features allow for better flexibility in production and enable companies to increase output without compromising quality. How These Innovations Push the Boundaries of What's Possible in Stamping The new press offers many innovations. It improves stamping accuracy and efficiency. The use of the eight-surface guide helps the press stay stable during operations. The multi-section air cushion ensures even pressure during stamping. These features allow the press to handle complex tasks with ease. The inclusion of servo production line interfaces makes the press adaptable to future technology needs. The press sets a new standard for stamping machines, pushing the limits of what can be done in this field. It opens up new possibilities for manufacturers to create more complex, precise parts. Boosting Productivity and Reducing Costs The Operational Efficiencies Gained Through the Press's Capabilities The new press increases productivity. It operates efficiently, saving time in production. The high-precision design reduces errors and rework. This leads to fewer delays and faster output. The press is designed to perform well under heavy workloads, allowing it to handle large-scale production. With its high operational speed and accuracy, it helps manufacturers produce more in less time. How It Helps Reduce Material Waste and Manufacturing Downtime The press also helps reduce material waste. Its precise stamping ability ensures that less material is wasted during production. This lowers costs and improves the overall efficiency of the manufacturing process. The press reduces downtime by working continuously at high speeds. Its reliable performance means fewer interruptions in production, which leads to a more consistent output. By minimizing downtime and waste, the press helps businesses cut operational costs and increase profit margins. Environmental Considerations and Sustainability Eco-Friendly Features of the GD2 Stamping Press The GD2 stamping press is designed with eco-friendly features. It uses less energy compared to older models. The press is built to operate efficiently, minimizing power consumption. Its precise design reduces waste, which helps conserve resources. The press is made from materials that are durable and easy to recycle. This design makes it a more sustainable option for manufacturers who are looking to reduce their environmental footprint. Its Role in Supporting Sustainable Manufacturing Practices The GD2 stamping press plays a key role in sustainable manufacturing. Its efficiency helps manufacturers reduce their overall energy use. The reduction of material waste also supports sustainability. By improving production processes, the press helps companies become more environmentally responsible. This machine supports green manufacturing practices, which is important as industries move towards more sustainable production methods. The press enables manufacturers to meet both high production standards and environmental goals. Upgrade Your Manufacturing with Guangduan's GD2 Stamping Press The GD2 stamping press offers great benefits. It improves accuracy and boosts production speed. This machine helps reduce waste and cuts costs. It is eco-friendly and supports sustainable practices. It can meet the growing demands for high-quality, precision parts. If you want to stay competitive, invest in the GD2 stamping press today. Take the next step towards better production efficiency and reduced environmental impact. Make your manufacturing process more effective and cost-efficient. Upgrade now and lead the way in innovation!

Enlarged Crank and Connecting Rod Interval

The GD2 design enlarges the distance between the crank and connecting rods. This geometry improves the press’s ability to withstand unbalanced and eccentric loads, which are common when running large, asymmetrical automotive dies or multi-station layouts. The result is:

•Better protection of tooling and frame

•Improved accuracy when load distribution is uneven

•More freedom for process engineers when designing die layouts

•Eight-Surface Full Guideway Slide System

The slide of the GD2 press runs on an eight-surface long guideway system. Compared with simpler guide concepts, this full-guideway arrangement offers:

•Higher resistance to side forces

•Reduced side thrust on the slide during forming

•Better control of slide movement over the entire stroke

For automotive manufacturers, this means:

•Lower wear on guides and gibs

•More consistent die alignment over time

•Improved part accuracy in long production runs

•Lower risk when running wide, deep or asymmetric tools

This guidance system is one of the key reasons the GD2 can operate as a precise Automotive Metal Forming Machine instead of just a high-tonnage press.

Multi-Station Transmission for Progressive and Transfer Dies

To support complex multi-station tooling, the GD2 incorporates a dedicated multi-station transmission arrangement. The two-level gear train is complemented by an intermediate idler mechanism that increases the spacing between pressure points.

This structural concept provides:

•Higher capacity to handle eccentric loads generated by progressive and transfer dies

•Reduced overall press height and a more compact footprint, while still offering a wide worktable for large dies

For automotive plants, it enables more capability within the same floor space and simplifies line layout in crowded stamping shops.

High-Torque Wet Clutch Engineered for Automotive Cycles

The GD2 series is equipped with a high-torque wet clutch using oil-immersed friction plates. Its main features include:

•Large torque reserve with extended service life

•Multi-plate, low-inertia design for quick response, start, and stop

•Stable, repeatable engagement under continuous high-load operation

On automotive stamping lines, where presses are constantly starting, stopping, and synchronizing with feeders or transfer systems, this clutch supports frequent interrupted cycles without overheating. The oil bath also helps dampen noise and prevents clutch dust from entering the air, supporting a cleaner and more comfortable shop environment.

Die Cushion Systems Tailored to Multi-Station Presses
Upper Knockout Cylinder

The slide can be equipped with an upper knockout cylinder to secure reliable part and scrap release in complex multi-station dies. This helps prevent sticking and supports stable automated operation at high speeds.

Upper and Lower Multi-Section Die Cushions

The GD2 can also be configured with upper and lower multi-section die cushions developed for multi-station stamping tasks. Typical features include:

•High force output in a compact envelope to suit different step pitches

•Long service life and high positioning accuracy

•Fast response with minimal pressure fluctuation

•Independent pressure adjustment for each cushion section

This level of control is vital in automotive forming lines, where one press may run a wide variety of parts and materials over its lifetime.

Automation and Servo Line Integration

Modern car factories rely on fully integrated forming cells, not isolated presses. The GD2 Series is designed with this reality in mind, offering built-in interfaces for two-dimensional and three-dimensional servo production lines.

This allows straightforward connection to:

Coil feeding and straightening systems
Transfer mechanisms and destackers
Robots and other automated handling equipment

With the right line design, a GUANGDUAN Automotive Metal Forming Machine becomes the central element of a synchronized stamping cell, improving throughput while reducing manual handling and safety risks.

Typical Automotive Applications

The GD2 Series fits a broad range of automotive stamping tasks, such as:

•Progressive die production of small and medium brackets, reinforcements and functional components

•Multi-station transfer forming of larger structural parts and subframes

•Integration into complete body and chassis lines with high levels of automation

In each case, the combination of a rigid frame, eight-surface guideways, a high-torque wet clutch and advanced die cushions supports consistent part quality and long-term process stability.

Why Choose GUANGDUAN Automotive Metal Forming Machines?

For OEMs and Tier suppliers, investments are increasingly evaluated over the full lifecycle of a vehicle program. The key question is not only how much tonnage a press can deliver, but how reliably it can produce in real factory conditions.

GUANGDUAN aligns its Automotive Metal Forming Machine development around:

•Rugged structural performance at high loads and high stroke speeds

•Precision that remains stable under partial or off-center loading

•Lower risk of stoppages through heavy-duty drive and clutch engineering

•Automation interfaces that support current and future line concepts

These characteristics help keep a GUANGDUAN Automotive Metal Forming Machine productive, adaptable, and competitive well into the future.

Conclusion: GD2 for Next-Generation Stamping Needs

With automotive programs becoming more dynamic and quality requirements tightening, the expectations placed on stamping presses are steadily increasing. Choosing the right Automotive Metal Forming Machine now requires a close look at frame rigidity, slide guidance, load and cushion design, and automation capability—not just nominal tonnage figures.

GUANGDUAN’s Straight Side Double Point Multi-Station Press GD2 Series is engineered to meet these requirements in modern automotive plants. By combining a high-rigidity frame, advanced drive system, eight-surface guideways, optimized die cushions and strong integration capability, it helps manufacturers achieve consistent quality, higher uptime and a lower total cost of ownership over the life of each vehicle program.
