10 Key Structural Components of a Heavy Duty Press Machine – Functions Explained

Heavy Duty Press Machines have become the principal machines for metal forming, automotive stamping, and even aerospace manufacturing. Understanding the major components allows an operator to make informed decisions while increasing productivity and safety. The following breakdown of the Heavy Duty Press Machine indicates the 10 most important parts, their functions, and their relevance.

1. Machine Body (Frame) – Rigid Base

Applying the maximum stamping pressure does not change the design of the main body frame. In Heavy Duty Press Machines, the rigidity of the frame extends the life of the tools, improves the accuracy of the parts, and the efficiency of press operations.

•  Purpose: A frame that has minimal lateral deflection provides good support of the slide, the bed, and the drive assembly.

•  Material and Process: The press body is produced using high-grade steel plates, as in similar GUANGDUAN designs. These plates are welded and subsequently subjected to high-temperature annealing to relieve residual stresses.

•  Why it matters: Rigidity is the major factor to avoid significant wear of guides and bearings.

✅  GUANGDUAN advantage: A welded steel body with high rigidity and therefore for sustained accuracy.

2. Slide (Ram) – The Striker

The slide impacts the workpiece located in the die.

•  Function: Slides vertically or at an angle causing a stroke to transfer energy to the tooling.

•  Key Feature: Slides have a large contact area for die mounting and have hydraulic overload protection.

The slide is the most important aspect of the machine when it comes to product precision.

3. Guideways – 8-Surface Long Guides for Stability

Guideways eliminate the possibility of the slide shifting sideways.

•  Purpose: Keep things centered and cushion side impacts.

•  Common types: V, box, or eight-surface long guides.

•  Benefit: The longer the guides, the more uniformly worn, and thus, more accurate they will remain.

✅  GUANGDUAN’s GP2/GP4 series features eight-surface long-guideway guiding. This allows stable precision control of loads off-center.

4. Main Transmission System

This system converts rotational energy into linear energy at a high force threshold. GUANGDUAN’s uniquely five shaft transmission system, arranged in an opposing manner, is the core of the system.

Benefits of GUANGDUAN’s five shaft transmission system include:

•  Due to symmetrical arrangement of the gears, the inertial forces cancel one another.

•  Side forces are counteracted. This feature enables higher precision and stability.

•  Maximization of spacing of the left and right pressure points improves resistance to unbalanced loads.

•  Reduction in speed is achieved in two stages from high to low (herringbone gear to spur gear).

•  High-strength alloy steel is used for the pinions. Large gears are made from 45# forged steel and subsequently undergo a heat treatment process.

✅  GUANGDUAN employs progressive, thin oil, automatic lubrication. This lowers both the noise and wear the system experiences. The transmission gears and connecting rods are set in place within the beam.

5. Clutch and Brake System

A reliable clutch-brake combination is fundamental to a Heavy Duty Press Machine.

GUANGDUAN’s Clutch-Brake System

•  The system serves to engage and disengage the flywheel’s impact on the crankshaft. The system engages a brake to halt the slide at the top dead center position.

•  Safety measures include the monitoring of two valves and an optical brake. Monitoring and engagement are substantiated by ISO 16092 standard.

•  Choose friction material and add a cooling system adequately to eliminate slipping, overheating, and eventual failure.

6. Overload Protection Device – Damage Avoidance

This system provides a safeguard against damage to the press from excessive tooling jamming or tonnage.

•  Work Mechanism: When the prescribed limit is exceeded, the system separates by either hydraulic or mechanical means.

•  Common Arrangement: In most hydraulic override protection arrangements, the standard elements are a pressure switch and a relief valve.

•  Intention: Safeguards the body the slide and tooling, which can be exceedingly costly.

7. Progressive Thin-Oil Automatic Circulating Lubrication System

A Heavy Duty Press Machine operates under extreme pressures; proper lubrication is non-negotiable.

•  Function: Continuously supply oil to bearings, gears, and guideways.

•  Monitoring features:

• Oil pressure

• Flow rate temperature

• Oil level

• Clogging detection

•  Benefit: Forced lubrication allows long-period full-load operation without overheating.

GUANGDUAN’s system increases reliability and equipment life by automatically monitoring all parameters.

8. Air Cushion (Die Cushion) – Blank Holding and Ejection

Air cushions are vital for deep-drawing and forming operations.

•  Function: Provide controlled counterforce to hold the blank edge or eject the formed part.

•  Structure (GUANGDUAN design):

1. Single top cap + two main cylinders

• Stroke regulating mechanism

• Hydraulic terminal buffering (reduces impact and noise)

• Optional lag latching cylinder for special drawing processes (prevents workpiece damage from rapid cushion rise)

•  Advantage: One standard-length ejector rod suits multiple drawing processes – no frequent rod changes.

9. Electrical Control System (PLC) – Automation & Precision Adjustment

Modern Heavy Duty Press Machine controls are PLC-based for repeatability and data integration.

•  Functions:

1. Automatic adjustment of air pressure

• Die set height (shut height) adjustment

• Air cushion stroke programming

A•  utomation degree: High – enables single-machine automated stamping with feeding/unloading devices.

•  Integration: Can link with automatic decoilers, levelers, and robots.

GUANGDUAN’s PLC control makes the press highly adaptable for Industry 4.0 environments.

10. Self–Moving Work Table & Die Clamping System – Faster Die Change

Die change downtime directly affects productivity. A self-moving work table (motorized bolster) slashes changeover time.

•  Function: Electrically moves the work table in/out of the press window for safe die replacement.

•  Die clamping system:

1. Hydraulic or pneumatic clamps secure the die without manual bolts.

• Greatly improves die change efficiency and operator safety.

•  Result: From hours to minutes – ideal for high-mix production.

✅  GUANGDUAN provides this system as standard on GP2/GP4 series, drastically improving OEE.

Why Choose GUANGDUAN‘s Heavy Duty Press Machine?

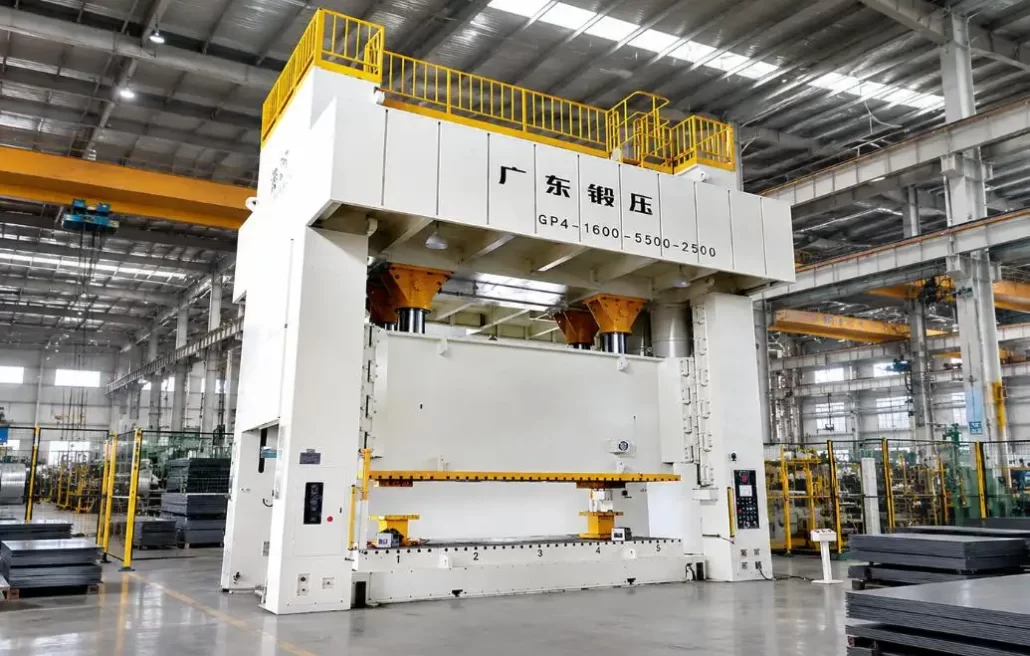

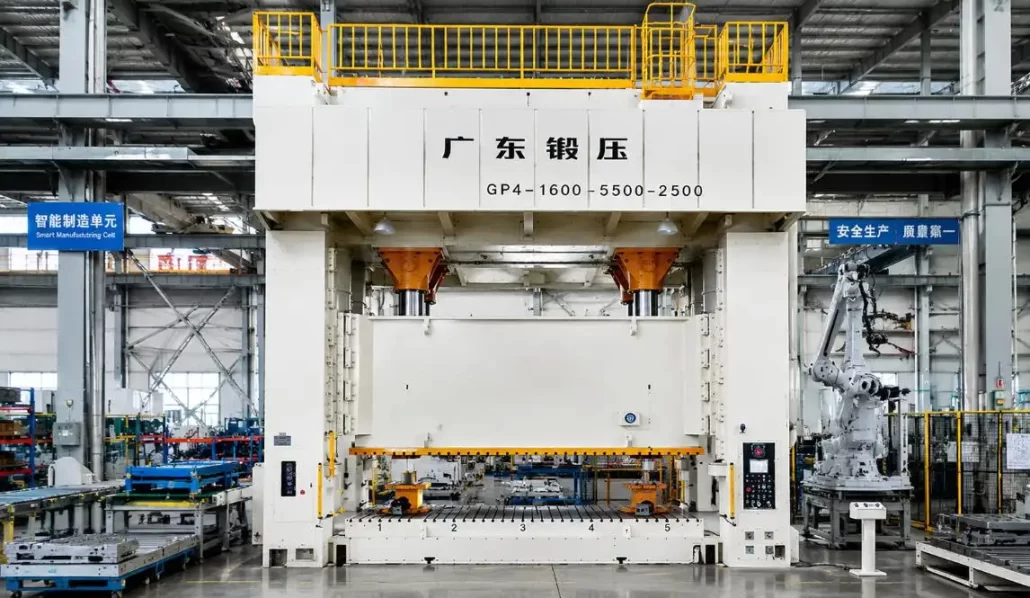

GUANGDUAN’s GP2/GP4 series (Two–point/Four–point Single Acting Precision Mechanical Press) embodies the best practices described above:

�� Body – Welded steel + high-temp annealing → high rigidity & precision stability.

�� Slide guiding – Eight-surface long guideways → stable precision under off-center loads.

�� Transmission – Five-shaft symmetrical gear design → counteracts side forces; maximizes unbalanced load resistance.

�� Lubrication – Progressive thin-oil automatic circulating system with real-time monitoring.

�� Air cushion – Pure-gas large tonnage type with stroke regulator and hydraulic buffering.

�� Automation – PLC control for automatic die height, air pressure, and air cushion stroke adjustment; optional automatic feeding/leveling devices.

�� Die change – Self-moving work table and die clamping system.

Available models from GP2-300 up to GP2-1200, and GP4-500 to GP4-1600, covering a wide tonnage range for demanding stamping operations.

Final Thoughts

Understanding these 10 structural components helps you evaluate any Heavy Duty Press Machine. GUANGDUAN’s engineering decisions — with a focus on rigidity or lubrication or automation or die change speed — offer a combination of precision, stability, and efficiency. General metal forming, automotive panels, appliance components — with a solidly made Heavy Duty Press Machine, significantly lower downtime, longer tool life, and constant part quality mean your investment will pay for itself.

Need a press you can depend on? Search for or demand welded and annealed frames, eight-surface guides, five-shaft trans, and total PLC integration. With GUANGDUAN, you get all of that.

FAQs

Q1: How often do you do preventive maintenance on a Heavy Duty Press Machine?

A: Daily, lubricate and check the clutch and brake. Inspect the guideways and bolts weekly. Monthly, do an oil analysis and check the system. GUANGDUAN has an automatic lubrication system to support you.

Q2: Is a mechanical press suitable for deep drawing?

A: Yes. However, hydraulic presses tend to hold better. For deep drawing in a mechanical press, an air cushion is necessary. GUANGDUAN manufactures a pure-gas type air cushion, which provides controlled holding and ejection of the blank.

Q3: What advantages does a two-point press have over a four-point press?

A: Two-point press (GP2 series) is best for medium-width dies. However, four-point presses (GP4 series) aid in better load distribution and resistance to unbalanced loads for very wide or progressive dies.

Q4: How do I determine the tonnage required for my stamping operation?

A: Tonnage is the perimeter times the thickness and shear strength of the material, plus the cushion force and a safety factor (20 to 30%). If unsure, reach out to GUANGDUAN’s application engineers and provide the drawing for the part.

Q5: Is GUANGDUAN into automation?A: Yes. Automated stamping has been integrated into the GP2/GP4 series. Automated feed systems, decoilers, levelers, and robots all use the same PLC to control the operation of a singular stamping machine.
