From Misalignment to Micron Precision: Eight-Sided Guide Rails in a Hydraulic Press For Metal Forming

Precision is essential in metal forming hydraulic presses. A system that applies thousands of tons of pressure cannot afford to have misalignment. Being that out of alignment causes scrap, walls that aren’t even, and die that wears out faster. The importance of the guide rail system is often underestimated. This article looks at how the eight-sided fully guided rail system outperforms traditional guide systems. It also looks at how GUANGDUAN utilized this system in the GY2S Series and offers exceptional precision and retentiveness over time.

Why Guidance Matters More Than You Think

Metal forming loads are often off-center, creating side forces that push the slide off-axis. Inadequate steering leads to yaw or tilt, creating the following problems:

•Die Wear Imbalance: Leads to asymmetrical wear and tool wear to be considerably shorter on the affected side of the die.

•Parts Not Meet Specification: and the deviation becomes greater, the number of rejected parts will inevitably increase.

•More scrap and rework: inconsistent quality adds extra operations.

A robust guide keeps slide movement straight and parallel, ensuring uniform pressure. That’s why eight-sided full guide rails are the standard for high-performance Hydraulic Press for Metal Forming applications.

What Is an Eight–Sided Full Guide Rail?

First, consider the conventional four-sided guide. It has four contact surfaces (usually 45° angled) with wear-resistant plates and copper-based materials. Limitations include:

•Limited contact area, poor side-load distribution.

•Clearance accumulates over time.

•Poor resistance to eccentric loads.

•Four-sided guides suit composite molding but not demanding metal forming like stamping or deep drawing. A more robust solution is needed.

The four-corner eight-sided guide rail design features four mutually perpendicular contact surfaces at each corner, creating a total of eight guiding faces. This design incorporates a large bearing surface, surrounding the slide completely. This leads to a guidance system that:

•More evenly distributes side loads across larger bearing surfaces.

•Decreases the clearances which result in twist and misalignment.

•Holds alignment during both high-pressure forming and rapid approach movements.

In eight-sided systems, the guide plates are usually copper based composites, which combine high wear resistance and excellent guidance.

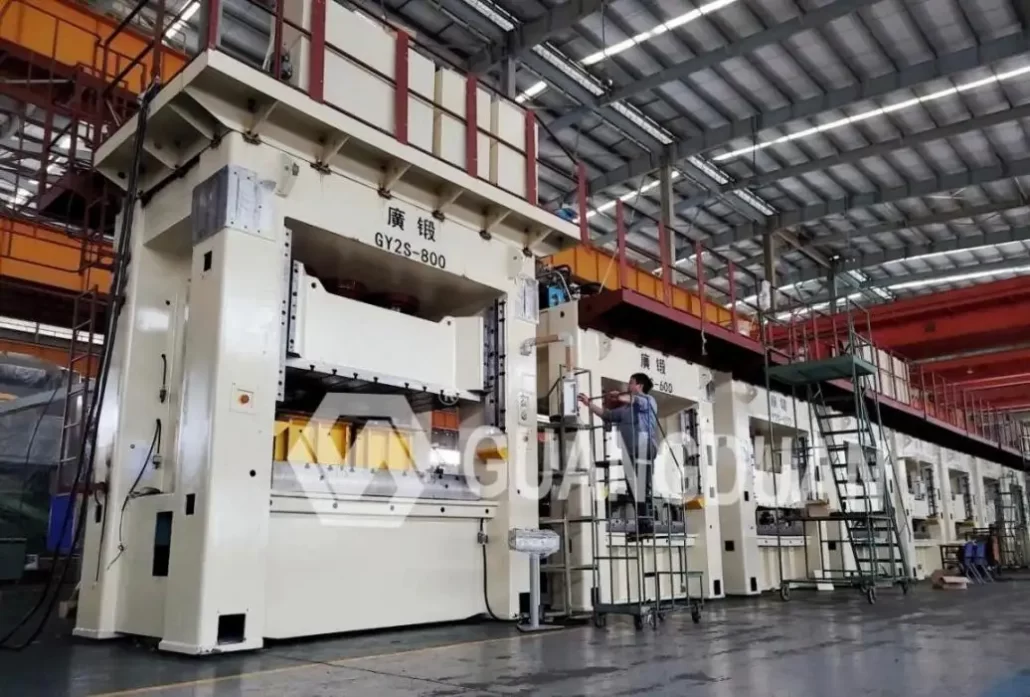

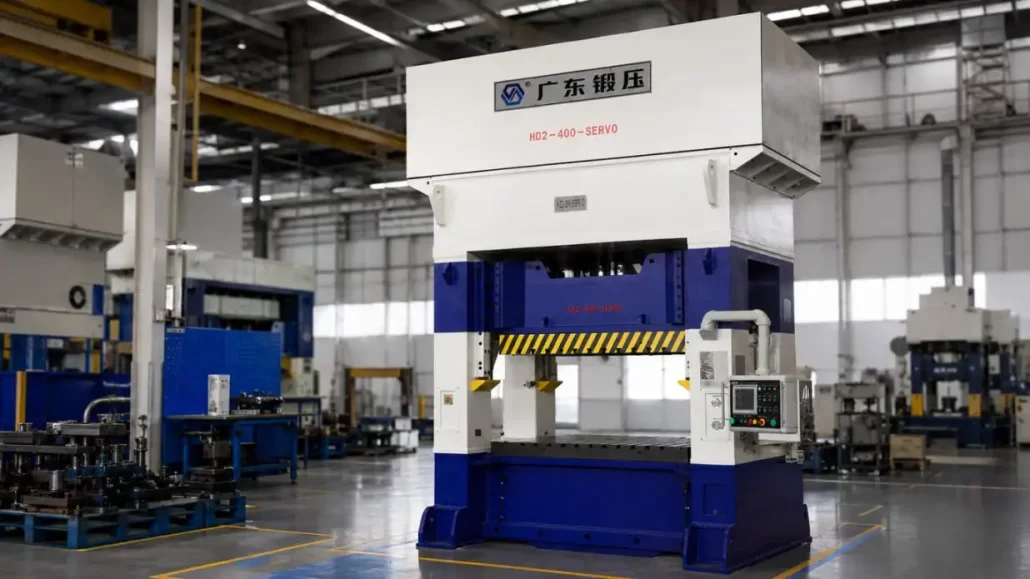

The GUANGDUAN GY2S Series: Eight-Sided Guidance

The design of the GY2S Series Hydraulic Press for Metal Forming by GUANGDUAN adopts the eight-sided fully guided rail system, and incorporates the design features to ensure precision for millions of cycles.

1. A Rigid Foundation: Welded Box Principle

The frame of the GY2S Series is constructed of high strength steel using the welded box construction. This design of the press provides excellent rigidity and a clean appearance combined with ease of transportation. Most importantly, it provides the guidance system with the rigid base it needs to function correctly. The purpose of precision guides would be defeated with a flexible frame. The GY2S frame is designed to remain rigid under all operating conditions, and therefore ensures the guide rails remain in alignment.

2. The Slide: A Steel-Plate Welded Box

The slider itself is crafted from a steel plate welded box structure. This construction resists deformation under load. When combined with the eight-sided full guide rail guidance, the result is a slide that:

•Maintains straightness even under asymmetric forming loads.

•Preserves parallelism between the slide and the table during contact.

•Reduces the risk of die galling and chipped punches.

3. Precision Retention: The Real Measure of Quality

One of the most critical aspects of any guidance system is not just initial accuracy – it is precision retention over time. The GY2S Series eight-sided guide rail design delivers “good precision and precision retention”. What does this mean on the production floor?

•Consistent part geometry shift after shift, without constant recalibration.

•Longer die life because of more even wear patterns in the tools.

•Fewer changes needed on the production line, which reduces downtime.

How Eight-Sided Guides Compare to Other Systems

To appreciate the eight-sided design, it is useful to see how it stacks up against other guide rail configurations commonly found in hydraulic presses.

Feature	Four-Sided Guide	Six-Point Guide	Eight-Sided Full Guide
Contact surfaces	4 angled faces	6 points	8 faces (4 corners × 2 faces)
Load distribution	Moderate	Good	Excellent – surrounds slide on all sides
Resistance to eccentric loads	Limited	Better	Outstanding
Precision retention	Moderate	Good	Superior – maintains accuracy over long-term use
Typical applications	Composite molding, light forming	Medium-duty stamping	Heavy-duty stamping, deep drawing, aerospace forming

The eight-sided full guide rail is not just an incremental improvement – it represents a fundamental upgrade in how a Hydraulic Press for Metal Forming maintains accuracy under real-world production conditions.

The Silent Partner: Thin Oil Continuous Circulation Lubrication

Even the best guide rail design will wear prematurely without proper lubrication. The GY2S Series addresses this with a thin oil continuous circulation lubrication system.

This system provides several critical benefits:

•A protective oil film that cuts friction on the guide surfaces and reduces wear.

•In long manufacturing processes, lubricating oil makes everything more frictionless.

•Heat dispersing system: Oil in the system absorbs heat from the surfaces of the guide. This reduces the thermal expansion risk of the clearances.

•Reduced maintenance: The lubrication system’s forced oil circulation means there is no need for regular manual lubrication.

The combination of the lubrication system with the eight-sided guide rails means that sustained precision for machine operations is achieved.

Beyond Mechanics: Closed-Loop Control Complements Precision Guidance

The eight-sided guide rail means substantial mechanical precision, but the GY2S Series adds a smart servo closed-loop control to reach a greater precision.

This system consists of:

•A servo motor driver for precise movement control.

•Pressure and displacement sensors for real-time feedback.

•A PLC that carries out real time control.

Because of the closed loop nature of the system, there is real time measurement, decision making and correction. Control of the position, pressure and speed is done as highly precise individual variables. The result is:

•High precision – position and pressure are monitored and corrected continuously.

•Low noise and low vibration – the servo drives on demand, not at full flow all the time.

•Energy savings – power consumption follows the cycle, cutting waste.

Intelligent Control via Touch Screen

The GY2S Series uses a PLC servo system + touch screen + grating ruler control mode. Operators can:

•Make real-time digital adjustments directly from the touch screen.

•Store up to 20 sets of mold parameters in the system.

•Fine-tuning cushion pressure, approach speed, dwell time, and return speed per die and process leads to a reduction in setup time, trial stock, and the learning time to accommodate new parts.

Safety: Guarding the Precision Investment

A precision investment system has no value if the machine cannot operate safely. The GY2S Series has several safety layers.

•Slider locking device – locks the slider in any position to avoid unintentional sliding.

•Lower limit switch protection – prevents over-travel.

•Two-hand operation anti-repetition – minimizes the risk of accidents by requiring both hands to achieve specific functions.

•Touch screen anti error protection – parameter setting is protected by a multi-level safeguard.

These features of safety give customers the peace of mind that operators and the precision components of the machine are protected, and that the eight-sided guide rails will yield quality results for many years.

Real Life Impact: Productivity Gains from Eight-Sided Guidance

There is a clear financial return on investing in a Hydraulic Press for Metal Forming with an eight-sided, fully guided rail system.

•Smooth slide movement under asymmetrical load results in near zero rejected parts.

•More precise matching of slide and table contacts brings consistency to wall thickness and geometry.

•Reduced die galling and chipped punches lead to less tool replacement and repair.

•More consistent thickness and geometry on drawn parts – reduced secondary operations.

•Stable forming with longer die life and fewer line adjustments.

The GY2S Series, with its eight-sided full guide rail guidance, high-rigidity welded box frame, and intelligent servo control, is designed to “keep deflection low, keep alignment stable, and keep your die working in the right window for longer”.

Conclusion

The eight-sided guide rail is the unseen backbone of any Hydraulic Press for Metal Forming, resisting off-center loads and preserving accuracy over millions of strokes. GUANGDUAN’s GY2S Series combines this design with rigid welded construction, thin-oil lubrication, and servo control to deliver consistent, repeatable results. In precision-driven production, this is not a minor detail—it is a competitive edge.

For full specifications, visit GUANGDUAN’s official product page.
